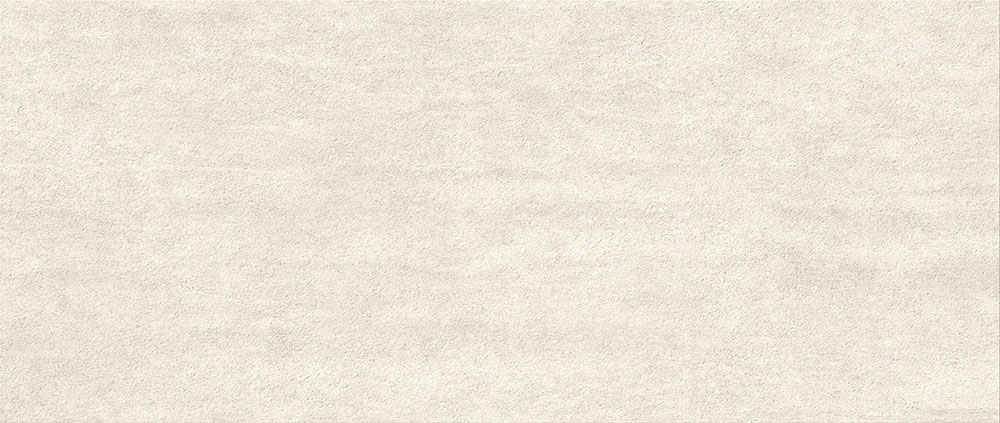

PRODUCT DETAILS

Series: Marvel 3D Wall
SKU: 153DMWHI2048
Size: 20" x 48"*
Thickness: 8.5 mm
Composition: White Body Wall
Finish: Matte
Stocked: Special Order Import ?

Stock Status:

This product is available via Special Order, and will deliver in approximately 10-12 weeks.
Country: Italy
Sizes listed are approximate. Actual sizes with acceptable variances may be listed in the brochure.

TRIM

View the Brochure for available or recommended trim options.

TECHNICAL INFORMATION

Surface Rating: Wall Only
SLIP: Wall Use Only ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

While many tile products still show a "COF" value, many manufacturers have stopped reporting coefficient of friction per the ASTM C1028 method because the standard for tile floors has changed. There is now a >0.42 requirement, measured per the DCOF AcuTestâ„ , for level interior tiles that will be walked on when wet.

Slip Resistance may also be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.
Shade Variation: MODERATE ?
shade variation rating chart

Shade Variation Rating: MODERATE

Clearly distinguishable texture and/or pattern within similar colors.
Eco-Certification AC Eco ?
Certifications include: ISO 9001, LEED V4*, EPD, PEF*, FDES*, HPD, and CAM/ISO 14021. Additional information is available here
FAQs: Click here for Information about Tile

RELATED ITEMS

Items in GREEN are available via QuickSHIP

20" x 48"
(Matte)

20" x 48"
(Matte)

20" x 48"
(Matte)
Items in GREEN are available via QuickSHIP

20" x 48"
(Matte)

20" x 48"
(Matte)

20" x 48"
(Matte)

OTHER COLORS


153DMBER2048
(Matte)

153DMMER2048
(Matte)

153DMLIG2048
(Matte)

153DMSAN2048
(Matte)

153DMWHI2048
(Matte)

153DMBER2048
(Matte)

153DMMER2048
(Matte)

153DMLIG2048
(Matte)

153DMSAN2048
(Matte)

153DMWHI2048
(Matte)

CATALOGS


Marvel 3D Wall Brochure

Warranty

Care + Maintenance
TRIM

View the Brochure for available or recommended trim options.
TECHNICAL INFORMATION
Surface Rating: Wall Only
SLIP: Wall Use Only ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

Slip Resistance may be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.

Slip Resistance may also be measured using a Ramp Test.
Shod Ramp Test: R9 (minimal) to R13 (maximum)
Barefoot Ramp Test: A (minimal) to B (maximum)
Shade Variation: MODERATE ?
shade variation rating chart

Shade Variation Rating: MODERATE

Clearly distinguishable texture and/or pattern within similar colors.
Eco-Certification AC Eco ?

Environmental Rating: AC Eco

Certifications include: ISO 9001, LEED V4*, EPD, PEF*, FDES*, HPD, and CAM/ISO 14021. Additional information is available here
FAQs: Click here for Information about Tile
