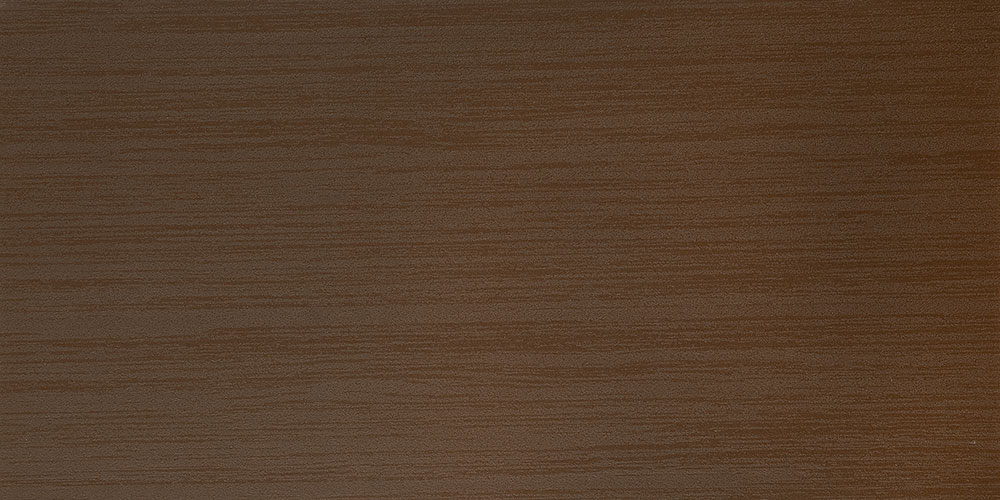

PRODUCT DETAILS

Series: Shades 2.0
SKU: 03SHD532448SPO
Size: 24" x 48"*
Thickness: 10.5 mm
Composition: Porcelain Stoneware
Finish: Semi-Polished
Stocked: Domestic:
2 week ETA
?

Stock Status:

This product is stocked in the US, and will deliver in approximately 2 weeks.
Country: USA
Sizes listed are approximate. Actual sizes with acceptable variances may be listed in the brochure.

TRIM

  • 4" x 24" Unpolished Bullnose

  • 4" x 24" Semi-Polished Bullnose

  • 6" x 12" Unpolished Cove Base
For detailed information on trim pieces, click here.

TECHNICAL INFORMATION

Surface Rating: Mohs Scale: 7
SLIP: DCOF Wet .42-.52 ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

While many tile products still show a "COF" value, many manufacturers have stopped reporting coefficient of friction per the ASTM C1028 method because the standard for tile floors has changed. There is now a >0.42 requirement, measured per the DCOF AcuTestâ„ , for level interior tiles that will be walked on when wet.

Slip Resistance may also be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.
Shade Variation: MODERATE ?
shade variation rating chart

Shade Variation Rating: MODERATE

Clearly distinguishable texture and/or pattern within similar colors.
Eco-Certification USGBC + G² ?
The U.S. Green Building Council (USGBC), founded in 1993, is a non-profit trade organization that promotes sustainability in how buildings are designed, built and operated.

The USGBC is best known for the development of the Leadership in Energy and Environmental Design (LEED) rating system and Greenbuild, a green building conference that promotes the green building industry, including environmentally responsible materials, sustainable architecture techniques and public policy.

Green Squared ® is the first multi-attribute sustainability standard for ceramic and glass tiles, quarried stone, and tile installation materials. Third-party certification to Green Squared demonstrates environmental leadership. Green Squared also contributes to LEED v4 credits as well as meets EPA ecolabel and GSA procurement requirements.
FAQs: Click here for Information about Tile
