This product meets the requirements for the Build America, Buy America Act (BABA).
Pin it Share on Facebook I love being tweeted Email it

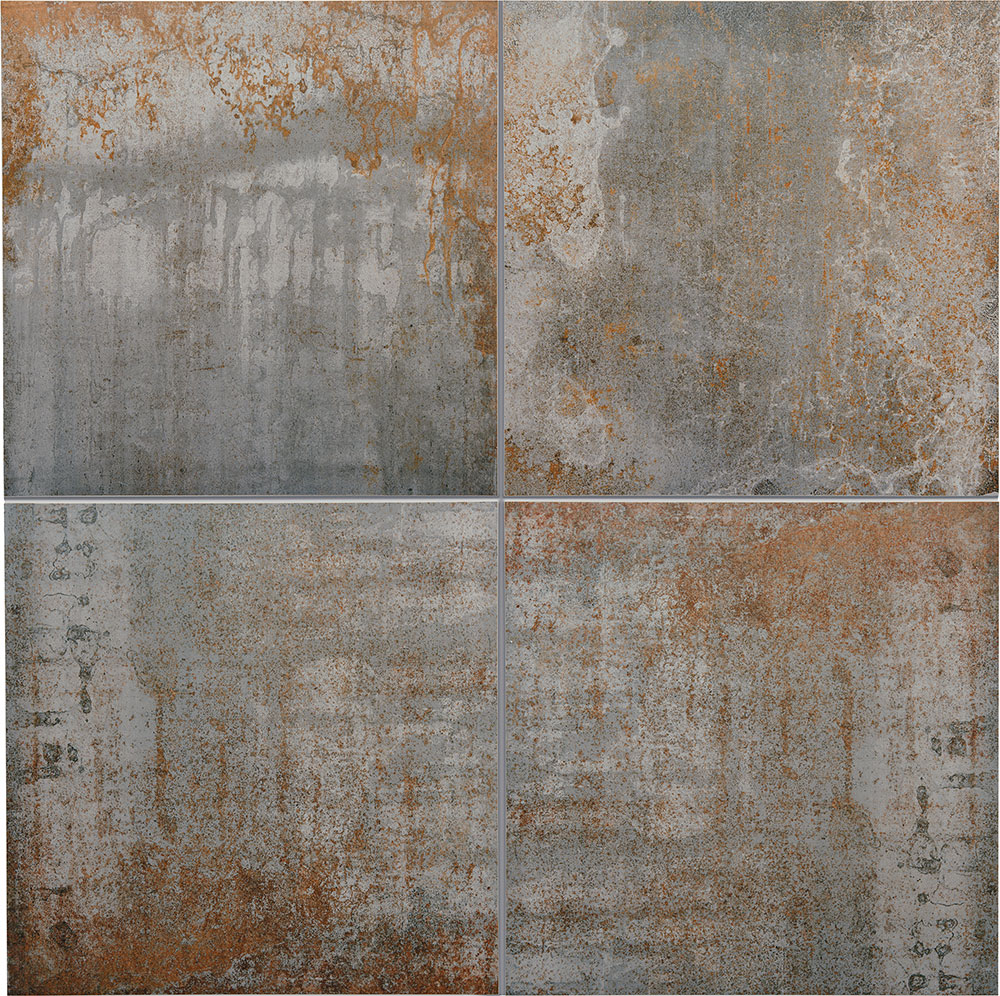

PRODUCT DETAILS

SKU: 03AV34224U
Series: Altered State
Color: AV342 Steel Gaze
Size: 24" x 24"*
Thickness: 10.5 mm
Composition: Digital Inkjet Porcelain
Finish: Unpolished
Stocked: Domestic:
1 week ETA
?

Stock Status:

This product is stocked in the US, and will deliver in approximately 1 week.
Country: USA
Sizes listed are approximate. Actual sizes with acceptable variances may be listed in the brochure.

TRIM

  • 6" x 24" Unpolished Bullnose

TECHNICAL INFORMATION

Surface Rating: Mohs Scale: 7
SLIP: DCOF Wet .42-.52 ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

While many tile products still show a "COF" value, many manufacturers have stopped reporting coefficient of friction per the ASTM C1028 method because the standard for tile floors has changed. There is now a >0.42 requirement, measured per the DCOF AcuTest℠, for level interior tiles that will be walked on when wet.

Slip Resistance may also be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.
Shade Variation: HIGH ?
shade variation rating chart

Shade Variation Rating: HIGH

While the colors present on a single piece of tile will be indicative on the colors to be expected on the other tiles, the amount of colors on each piece may vary significantly.”
Eco-Certification 4% Recycled + G² by SCS ?
This tile contains a minimum of 4 percent pre-consumer recycled content and is manufactured by Crossville® using processes that have been certified by Scientific Certification Systems. SCS has verified that through these recycling processes Crossville® recycles nearly 12 million pounds of previously discarded filtrate and fired tile waste. In addition to its own fired waste recycling, Crossville® also accepts and recycles reclaimed, previously installed tile through its tile “Take Back” program. For more information, visit CrossvilleInc.com/green.
FAQs: Click here for Information about Tile

RELATED ITEMS

Items in GREEN are available via QuickSHIP

2" x 12"
(Unpolished)

6" x 24"
(Unpolished)

12" x 24"
(Unpolished)

24" x 24"
(Unpolished)
Items in GREEN are available via QuickSHIP

2" x 12"
(Unpolished)

6" x 24"
(Unpolished)

12" x 24"
(Unpolished)

24" x 24"
(Unpolished)

OTHER COLORS


AV341 White Hot 03AV34124U
(Unpolished)

AV342 Steel Gaze 03AV34224U
(Unpolished)

AV343 Acid Wash 03AV34324U
(Unpolished)

AV344 Copper Core 03AV34424U
(Unpolished)

AV345 Melting Point 03AV34524U
(Unpolished)

AV341 White Hot 03AV34124U
(Unpolished)

AV342 Steel Gaze 03AV34224U
(Unpolished)

AV343 Acid Wash 03AV34324U
(Unpolished)

AV344 Copper Core 03AV34424U
(Unpolished)

AV345 Melting Point 03AV34524U
(Unpolished)

CATALOGS


Altered State Brochure

Technical Specs

Certifications

SDS

Warranty

Care + Maintenance
TRIM

  • 6" x 24" Unpolished Bullnose
TECHNICAL INFORMATION
Surface Rating: Mohs Scale: 7
SLIP: DCOF Wet .42-.52 ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

Slip Resistance may be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.

Slip Resistance may also be measured using a Ramp Test.
Shod Ramp Test: R9 (minimal) to R13 (maximum)
Barefoot Ramp Test: A (minimal) to B (maximum)
Shade Variation: HIGH ?
shade variation rating chart

Shade Variation Rating: HIGH

While the colors present on a single piece of tile will be indicative on the colors to be expected on the other tiles, the amount of colors on each piece may vary significantly.”
Eco-Certification 4% Recycled + G² by SCS ?

Environmental Rating: 4% Recycled + G² by SCS

This tile contains a minimum of 4 percent pre-consumer recycled content and is manufactured by Crossville® using processes that have been certified by Scientific Certification Systems. SCS has verified that through these recycling processes Crossville® recycles nearly 12 million pounds of previously discarded filtrate and fired tile waste. In addition to its own fired waste recycling, Crossville® also accepts and recycles reclaimed, previously installed tile through its tile “Take Back” program. For more information, visit CrossvilleInc.com/green.
FAQs: Click here for Information about Tile
RELATED ITEMS
Items in GREEN are available via QuickSHIP

2" x 12"
(Unpolished)

6" x 24"
(Unpolished)

12" x 24"
(Unpolished)

24" x 24"
(Unpolished)
OTHER COLORS

AV341 White Hot 03AV34124U
(Unpolished)

AV342 Steel Gaze 03AV34224U
(Unpolished)

AV343 Acid Wash 03AV34324U
(Unpolished)

AV344 Copper Core 03AV34424U
(Unpolished)

AV345 Melting Point 03AV34524U
(Unpolished)
