This product meets the requirements for the Build America, Buy America Act (BABA).
Pin it Share on Facebook I love being tweeted Email it

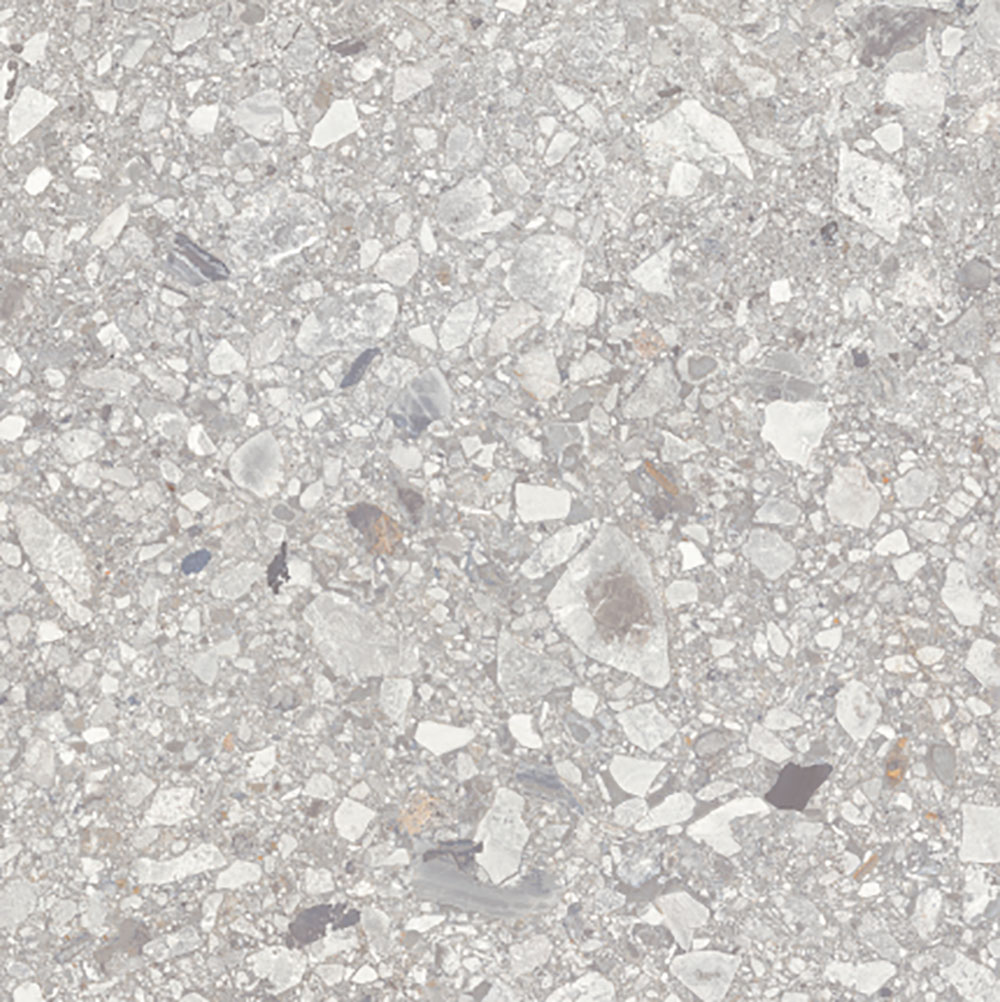

PRODUCT DETAILS

Series: Havana Stone
SKU: 75HAVLIG36
Size: 36" x 36"*
Thickness: 9 mm
Composition: Glazed Porcelain
Finish: Matte
Stocked: Coming Soon ?

Stock Status:

This product is on order and will arrive soon.
Country: USA
Sizes listed are approximate. Actual sizes with acceptable variances may be listed in the brochure.

TRIM

  • 4" x 12" Matte Bullnose

TECHNICAL INFORMATION

Surface Rating: Abrasion Resistance: Class IV
Mohs Scale: 7
SLIP: DCOF ≥ .42 ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

While many tile products still show a "COF" value, many manufacturers have stopped reporting coefficient of friction per the ASTM C1028 method because the standard for tile floors has changed. There is now a >0.42 requirement, measured per the DCOF AcuTest℠, for level interior tiles that will be walked on when wet.

Slip Resistance may also be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.
Shade Variation: MODERATE ?
shade variation rating chart

Shade Variation Rating: MODERATE

Clearly distinguishable texture and/or pattern within similar colors.
Eco-Certification G² + EPD ?
Green Squared® involves one industry, one standard, and one mark and covers the gamut of products used in a tile installation. As the first multi-attribute sustainability standard developed for tiles and tile installation materials, Green Squared uses the transparency and consensus of the ANSI process combined with third party certification to evaluate, validate, and communicate products which have a positive impact on the environment and society.

Green Squared covers product characteristics, manufacturing, end of product life management, progressive corporate governance, and innovation in an effort to establish sustainability criteria for products throughout their full lifecycle.

EPDs signal a manufacturer's commitment to measuring and reducing the environmental impact of its products and services and report these impacts in a hyper-transparent way. With an EPD, manufacturers report comparable, objective and third-party verified data that show the good, the bad and the evil about the environmental performance of their products and services.
FAQs: Click here for Information about Tile

RELATED ITEMS

Items in GREEN are available via QuickSHIP

2" x 2"
(Matte)

2" x 2"
(Matte)

3" x 3"
(Matte)

3" x 3"
(Matte)

4" x 4"
(Matte)

12" x 24"
(Matte)

24" x 24"
(Matte)

24" x 48"
(Matte)

36" x 36"
(Matte)
Items in GREEN are available via QuickSHIP

2" x 2"
(Matte)

2" x 2"
(Matte)

3" x 3"
(Matte)

3" x 3"
(Matte)

4" x 4"
(Matte)

12" x 24"
(Matte)

24" x 24"
(Matte)

24" x 48"
(Matte)

36" x 36"
(Matte)

OTHER COLORS


75HAVBEI24
(Matte)

75HAVDAR24
(Matte)

75HAVLIG24
(Matte)

75HAVWHI24
(Matte)

75HAVBEI24
(Matte)

75HAVDAR24
(Matte)

75HAVLIG24
(Matte)

75HAVWHI24
(Matte)

CATALOGS


Havana Stone Brochure

Certifications

Warranty

Care + Maintenance
TRIM

  • 4" x 12" Matte Bullnose
TECHNICAL INFORMATION
Surface Rating: Abrasion Resistance: Class IV
Mohs Scale: 7
SLIP: DCOF ≥ .42 ?

HOW IS SLIP MEASURED?

Coefficient of friction (COF) is the measurement of a tile's frictional resistance, closely related to traction and slipperiness. Both static and dynamic measurements can be taken. Static coefficient of friction (SCOF) is the frictional resistance one pushes against when starting in motion. Dynamic coefficient of friction (DCOF) is the frictional resistance one pushes against when already in motion. For SCOF and DCOF, a slip occurs when pushing off with more force than the surface can resist. That can happen when the angle of the force changes (e.g., pushing off harder while pressing down less) or when the floor surface becomes more slippery than anticipated.

Slip Resistance may be measured using a Pendulum Test.
Class 0: Dry indoor areas only.
Class 1: Dry indoor with slope less than 6 degrees.
Class 2: Wet indoor areas (e.g. bathrooms, kitchen, pool surrounds). Dry indoor areas with slopes or stair steps.
Class 3: Indoor areas where, as well as water, other lubricants are present that can reduce slip resistance (e.g. commercial kitchens, garages, industrial floors, etc.). External areas.

Slip Resistance may also be measured using a Ramp Test.
Shod Ramp Test: R9 (minimal) to R13 (maximum)
Barefoot Ramp Test: A (minimal) to B (maximum)
Shade Variation: MODERATE ?
shade variation rating chart

Shade Variation Rating: MODERATE

Clearly distinguishable texture and/or pattern within similar colors.
Eco-Certification G² + EPD ?

Environmental Rating: G² + EPD

Green Squared® involves one industry, one standard, and one mark and covers the gamut of products used in a tile installation. As the first multi-attribute sustainability standard developed for tiles and tile installation materials, Green Squared uses the transparency and consensus of the ANSI process combined with third party certification to evaluate, validate, and communicate products which have a positive impact on the environment and society.

Green Squared covers product characteristics, manufacturing, end of product life management, progressive corporate governance, and innovation in an effort to establish sustainability criteria for products throughout their full lifecycle.

EPDs signal a manufacturer's commitment to measuring and reducing the environmental impact of its products and services and report these impacts in a hyper-transparent way. With an EPD, manufacturers report comparable, objective and third-party verified data that show the good, the bad and the evil about the environmental performance of their products and services.
FAQs: Click here for Information about Tile
